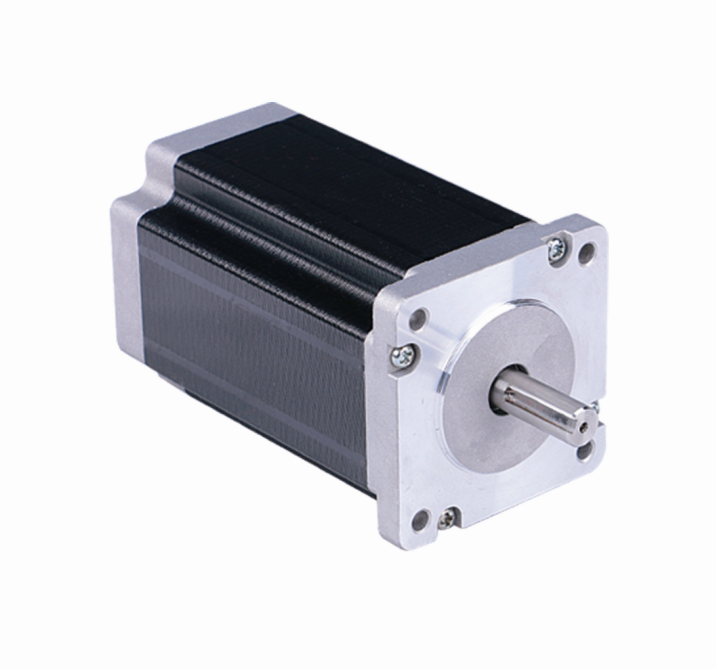

110BHH series stepper motors

Retail price
0.0
Market price
0.0
Number of views:
1000
Product serial number
Quantity
-
+
Stock:
0
Product description
Parameters

Introduction

After years of research and summary for the universal demand of the motion control in various areas of the industrial automation,we CW motor carefully planned the stepper motor production line.CW hybrid stepper motor use the high quality cold rolled silicon steel sheet and high temperature permanent magnet materials.And we adopt the unique leading magnetic circuit design proposal in the industrial area.Our motor has the characteristic of high running torque, low temperature rising, high reliability and so on.It has good internal damping characteristics, no obvious oscillation area and operate smooth.

Applications

At present, the CW products are widely used in the automa-tion equipment, such as engraving machine, laser machine,CNC machine, Medical Equipment,the electronic processing equipment, textile & garment machinery, etc.

Features

High Torque, low heat, low noise, smooth operation.

Name Rule

CW X1 BH X2 X3- X4X5- X6

CW: Changzhou Chuangwei Motor&Electric Apparatus Co., Ltd

X1: Motor frame size

BH: Hybrid stepper motor

X2: 1、If lack, it means it is two phase(four phase)regular torque

motor. The Step Angleis 1.8°

X3: Body length of the motor

X4: Motor current, three digits

X5: Motor winding and connection mode

X6: The manufacturer serial number

Note: 4 lead wire indicates A, 6 lead wire indicatse B, 8 lead wire indicates C, 5 lead wire indicates D, 3 lead wire indicates E.

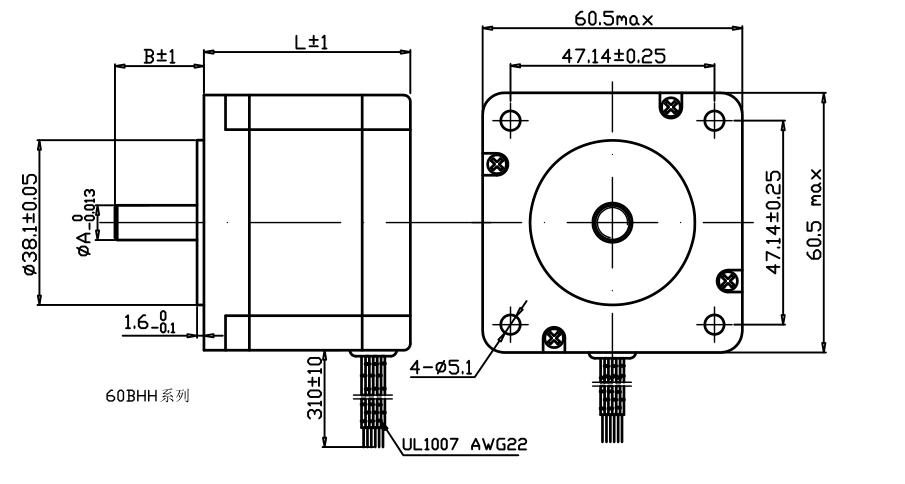

Mechanical Specifications

a

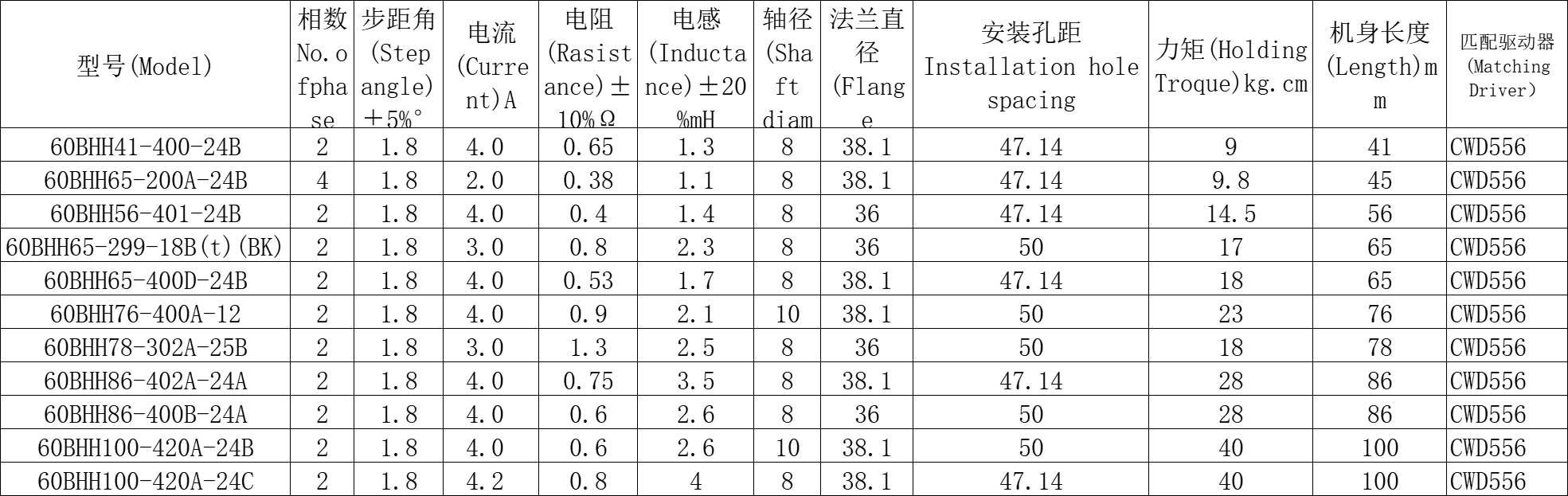

Electrical Specifications



a
