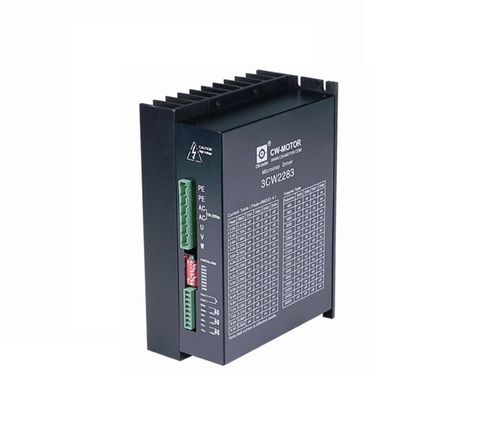

1. Descriptions
3CW2283 is subdivided and high-performance stepper motor drive using constant angle and constant torque，which is designed for 130BYG、110BYG and other 8A following three-phase hybrid stepping motor. The driver uses the circuit which is Similar to the principle of servo control with the features of smooth running, low noise, low vibration, low temperature rise of the motor .It has 16 kinds of micro-step, and the micro-step can be set from full step to 51200steps/rev.The working current can be set from 2.0A to 8.3A, and the output current has 16 stalls, the current resolution is about 2.0A; with automatic semi-flow, self-test, overvoltage, under-voltage and over-current protection. This driver is AC power,Voltage does not exceed 240VAC not less than 120VAC.
2. Features
• high performance, low price
• micro-step
• Automatic idle-current reduction
• Optical isolating signal I/O
•Max response frequency up to 70Kpps
• Low temperature rise, smooth motion
• Online adaptive PID technology
3.Applications
Suitable for a variety of large-scale automation equipments and instruments. For example: labeling machine, cutting machine, packaging machine, plotter, engraving machine, CNC machine tools and so on. It always performs well when applied for equipment which requires for low-vibration, low-noise, high-precision and high-velocity.

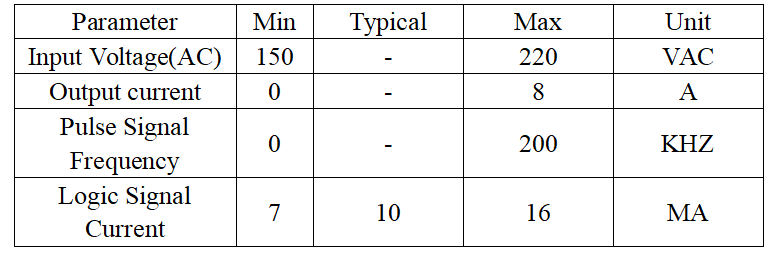

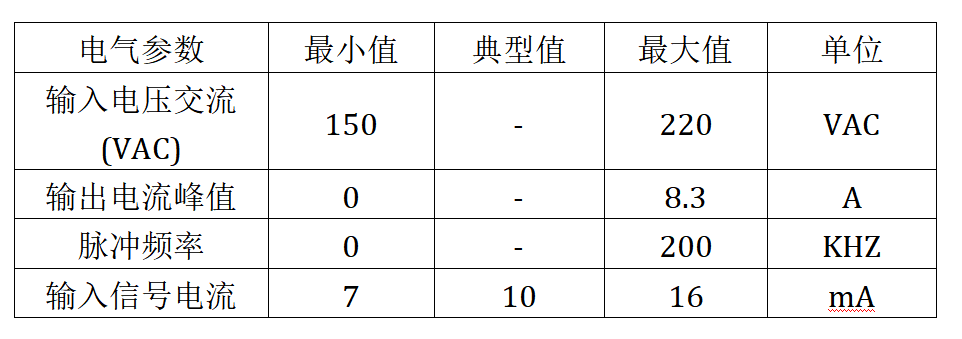

4. Electrical parameters
二、 Parameter setting

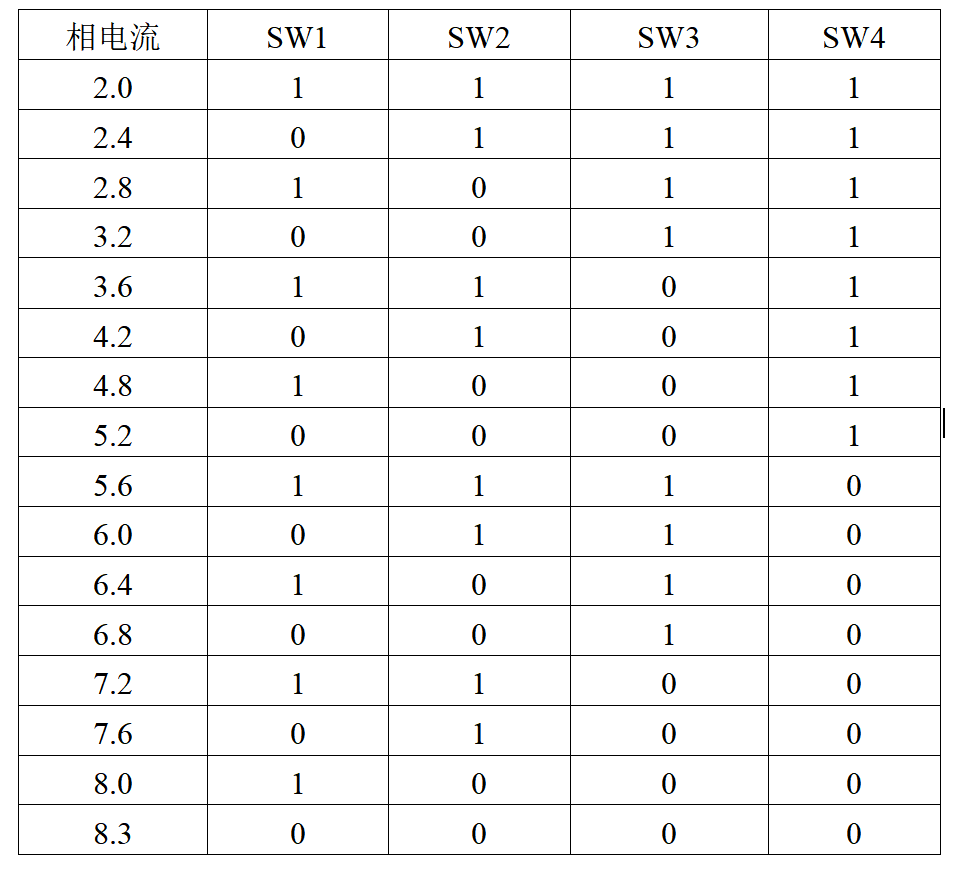

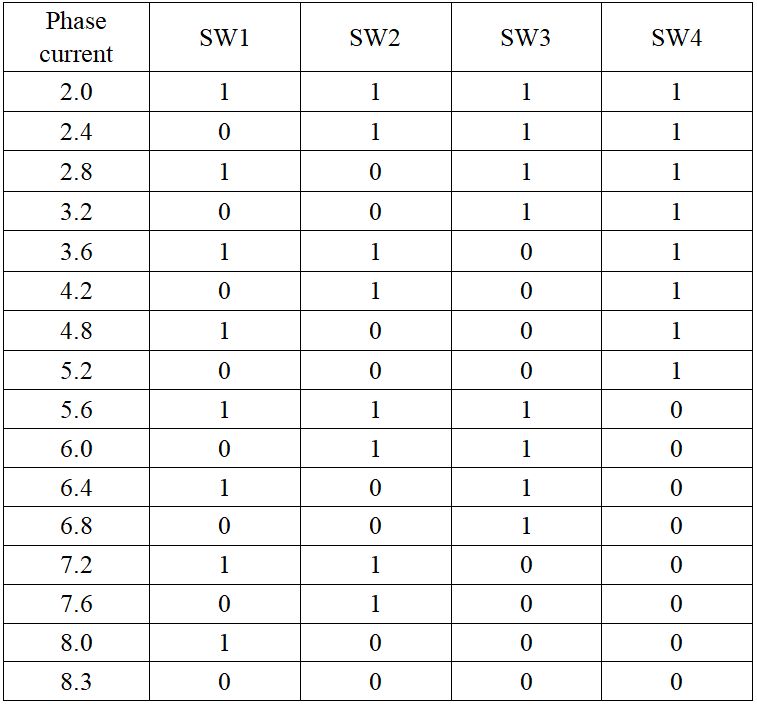

1. Current setting
Dial switch：ON=0;OFF=1
2.Standstill Current Setting
Half current is defaul

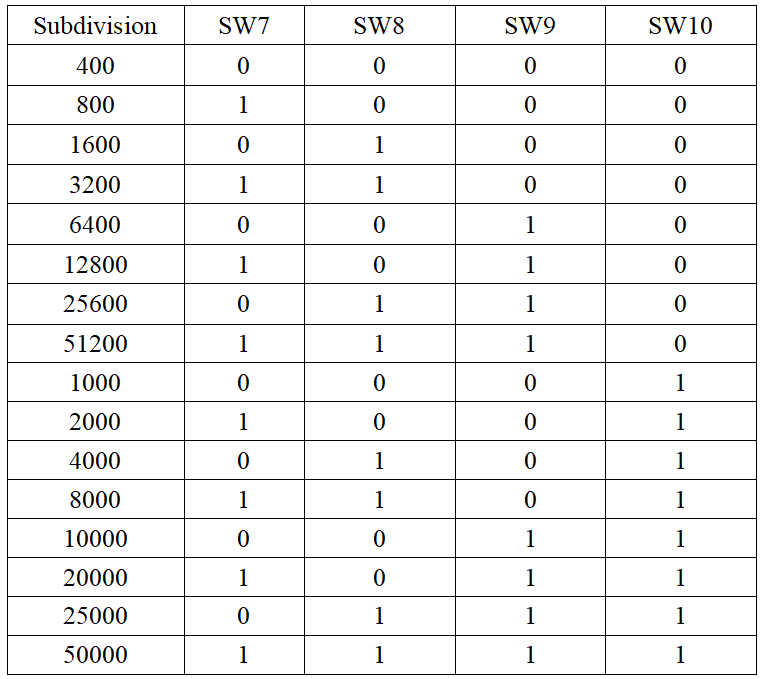

3. Microstep Setting
Dial switch: on=0; OFF=1

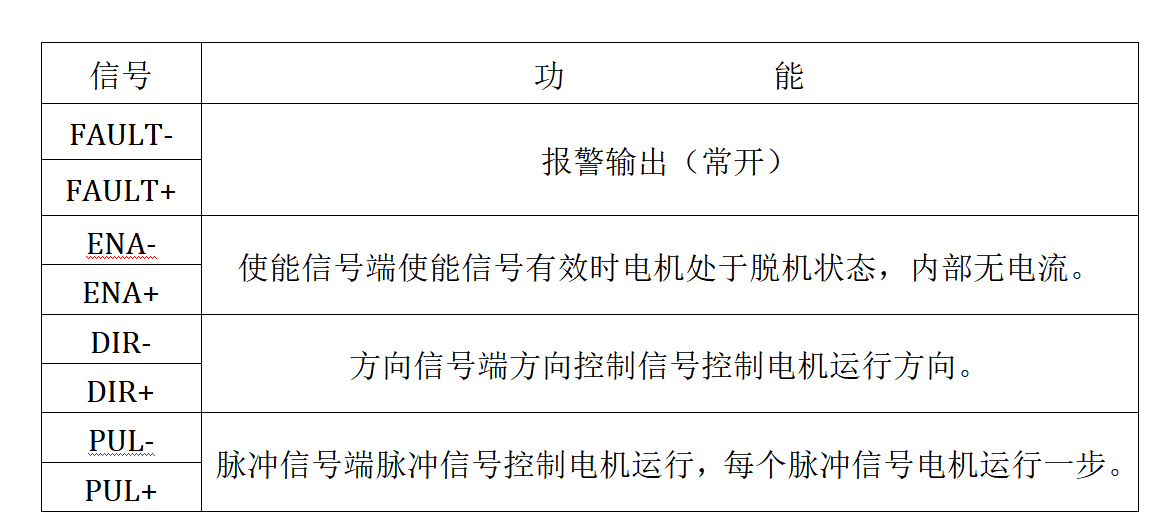

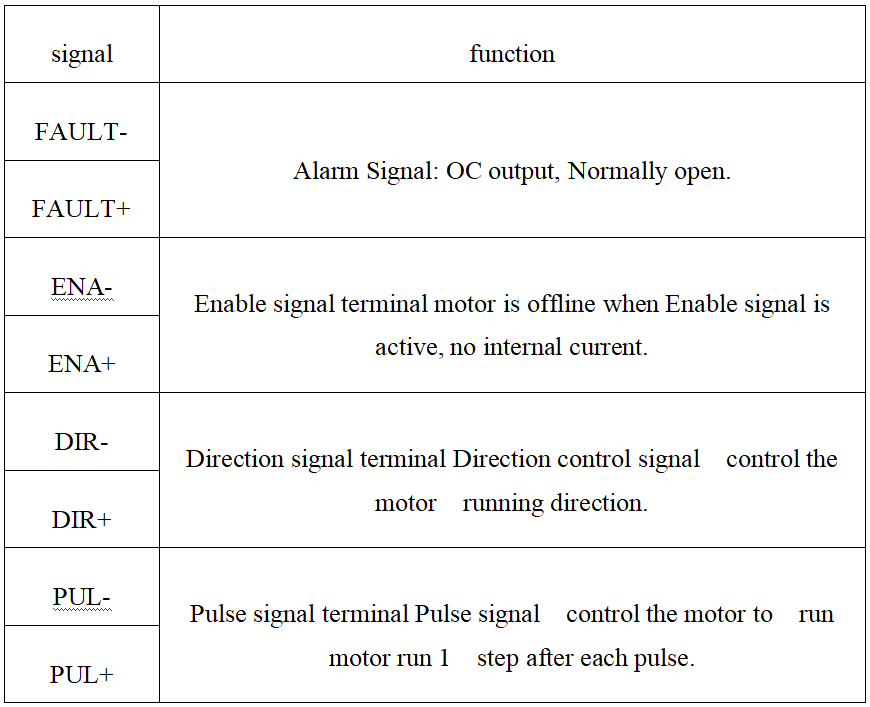

1. Control signal Connector

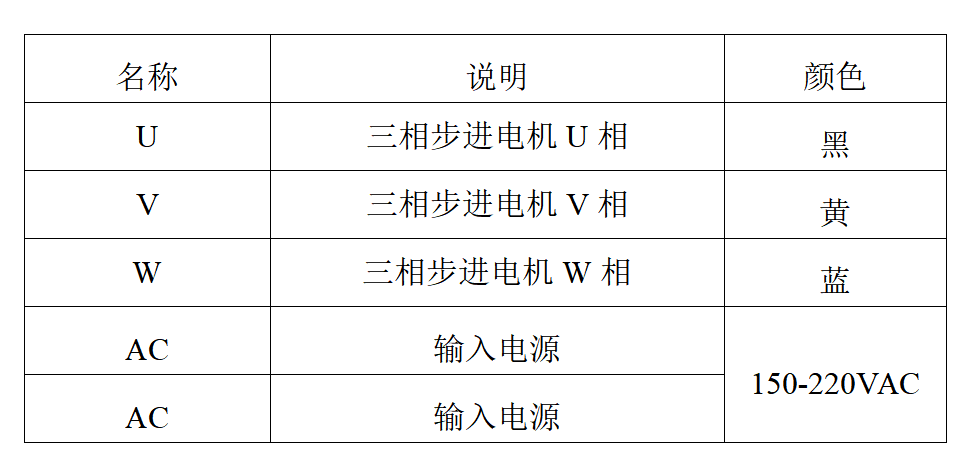

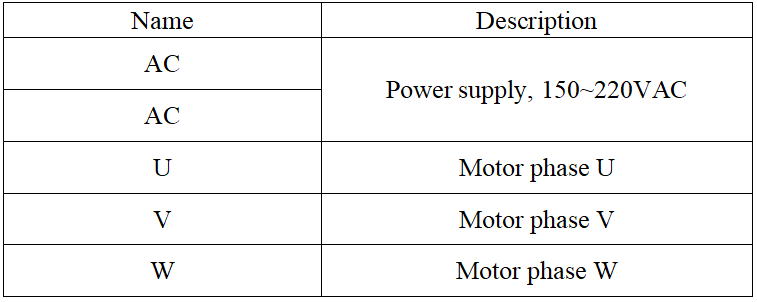

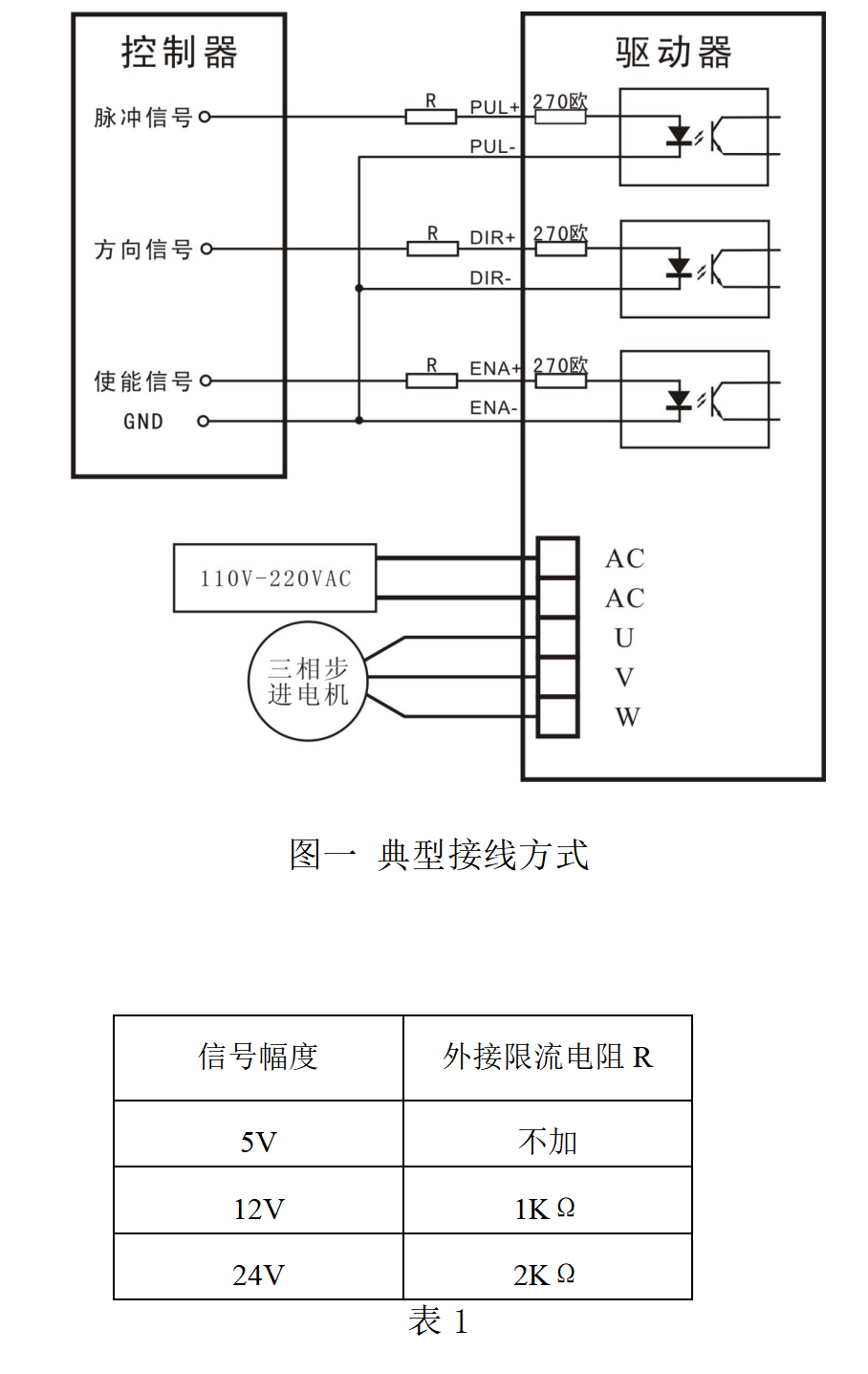

2. Power and Motor Connector

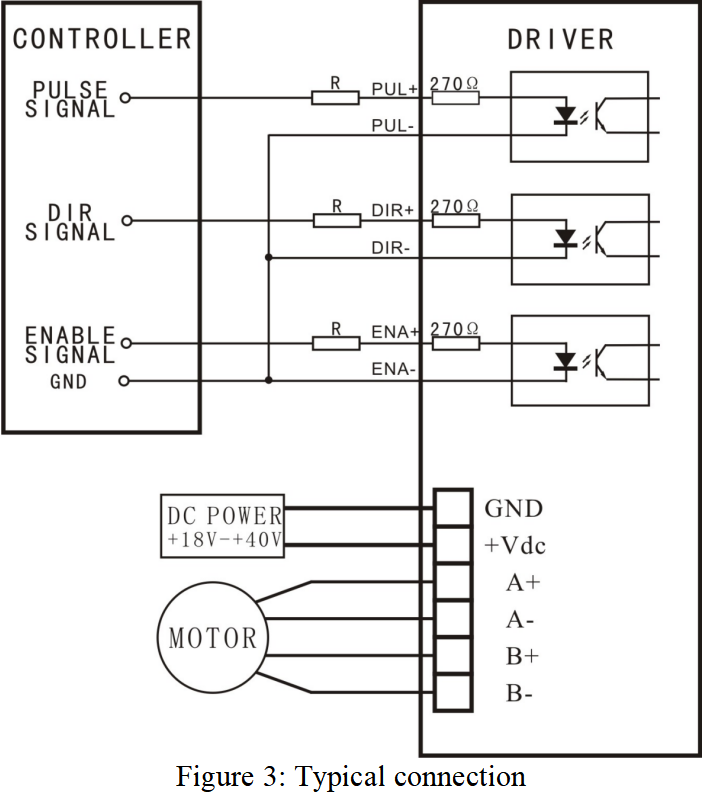

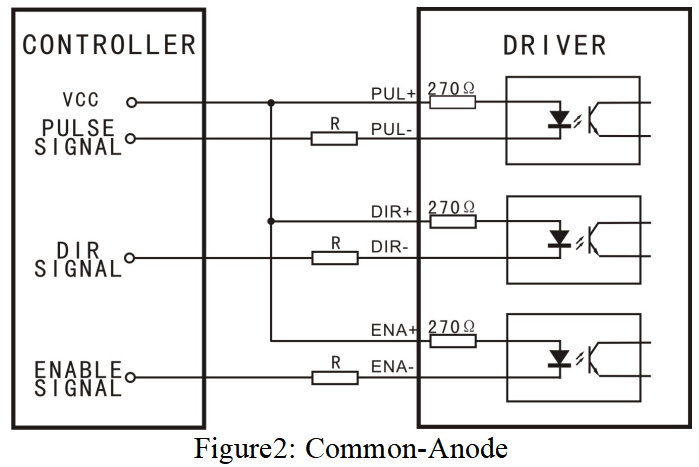

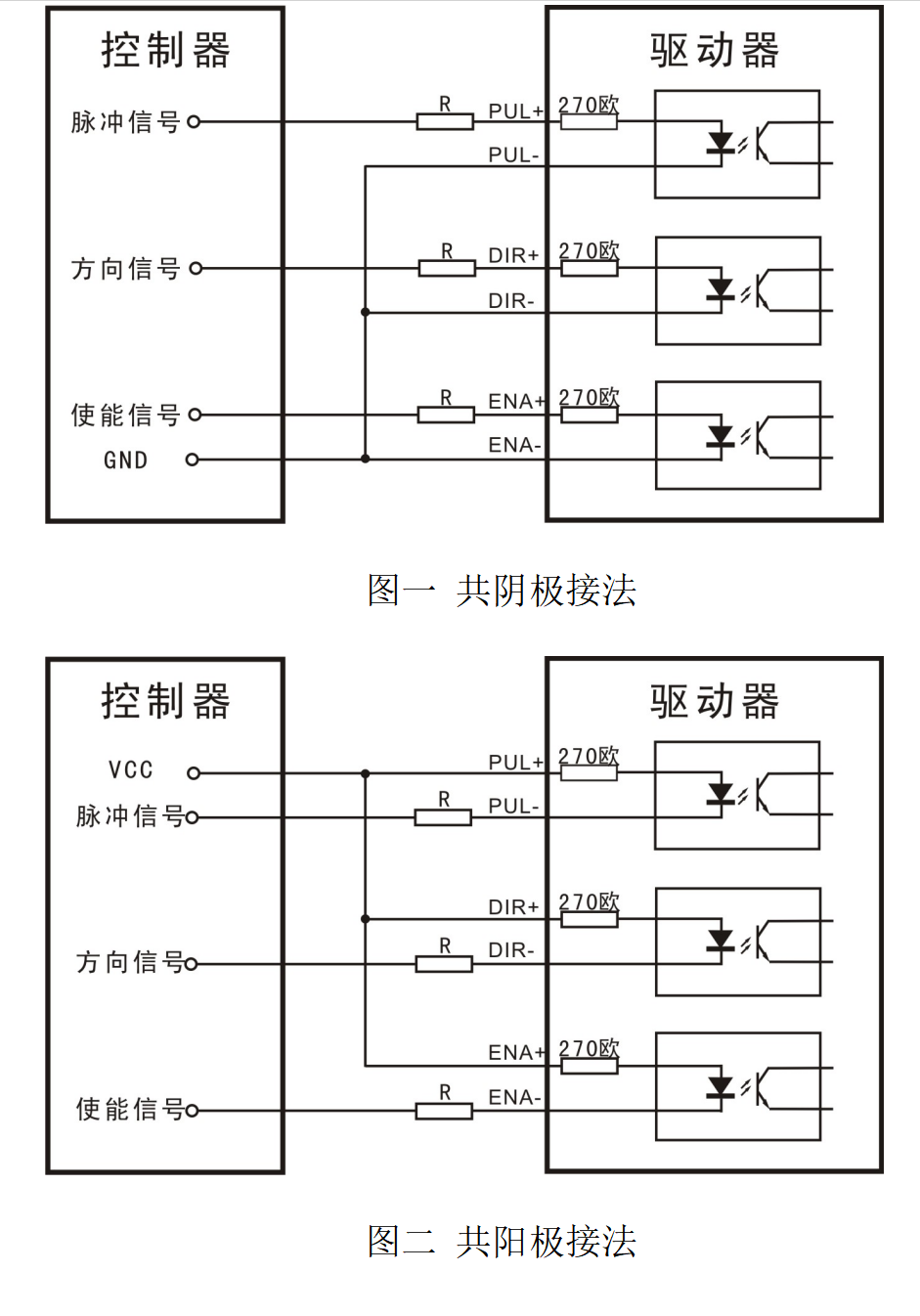

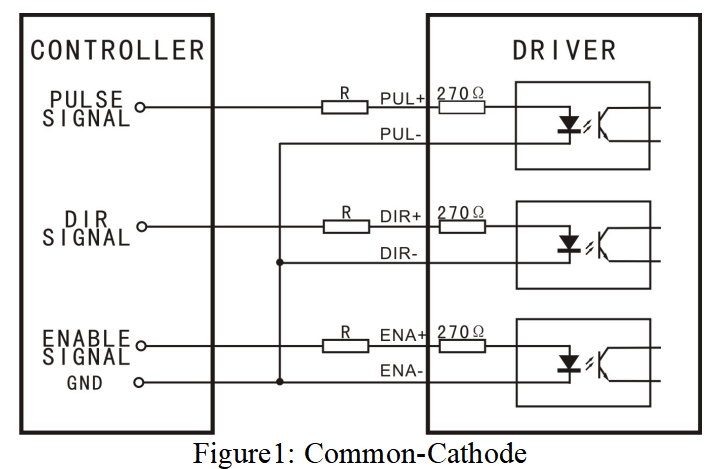

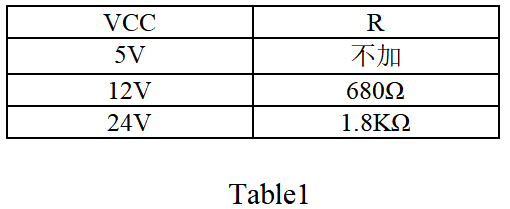

3.The interface circuit of control signal
