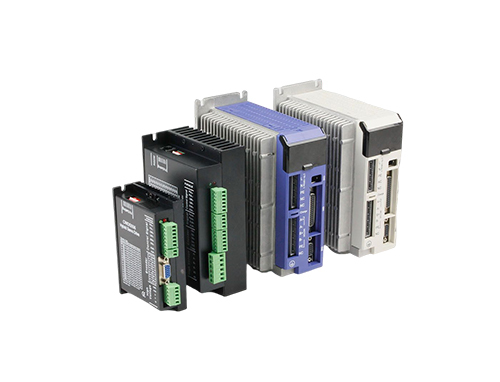

Closed loop stepper servo drives

Introduction

CWDS series are innovative hybrid servo drive products which are successfully developed by CW motor based on more than 10 years experience on stepper and servo motors.Adopt the latest motor control DSP chips and vector closed-loop control technology to overcome the problems of loosing steps for the open loop motor. Meanwhile, they can enhance the motor' S high-speed performance, reduce the heat and decrease the vibration of the motor, improve machine processing speed and accuracy, and reduce energy consumption of the machine. When the motor overload continuously, the driver will output the alerting signal in time. It has the same reliability as the AC servo systems. CWDS ,series can fit the size 42/57/60/86/1 10 series stepper motors completely. They can convenient the upgrading of traditional stepper drive scheme, and the cost will be half of the AC servo system.

Features

The range of operating voltage is 20VDC~ 70VDC,20VAC-220VAC; Support pulse/direction or double pulse control mode, and can receive differential and single ended signal instructions; Strong anti-interference ability with opto-couplers isolation signal input;Closed-loop control, no longer lose any steps; Higher torque and higher speed; Fast response; Reduced motor heating and more efficient; Stop without vibration; Smooth motion and super-low motor noise; No tuning and always stable; Lower cost.

Name Rule

CWDSX1X2

CW: Changzhou Chuangwei Motor&Electric Apparatus Co., Ltd

D: Digital drive(Don' t label in the non-digital drive)

S: Closed loop driver (Don' t label in the non-closed loop drive)

X1: The Maximum voltage of the drive

X2: The Maximum current of the drive

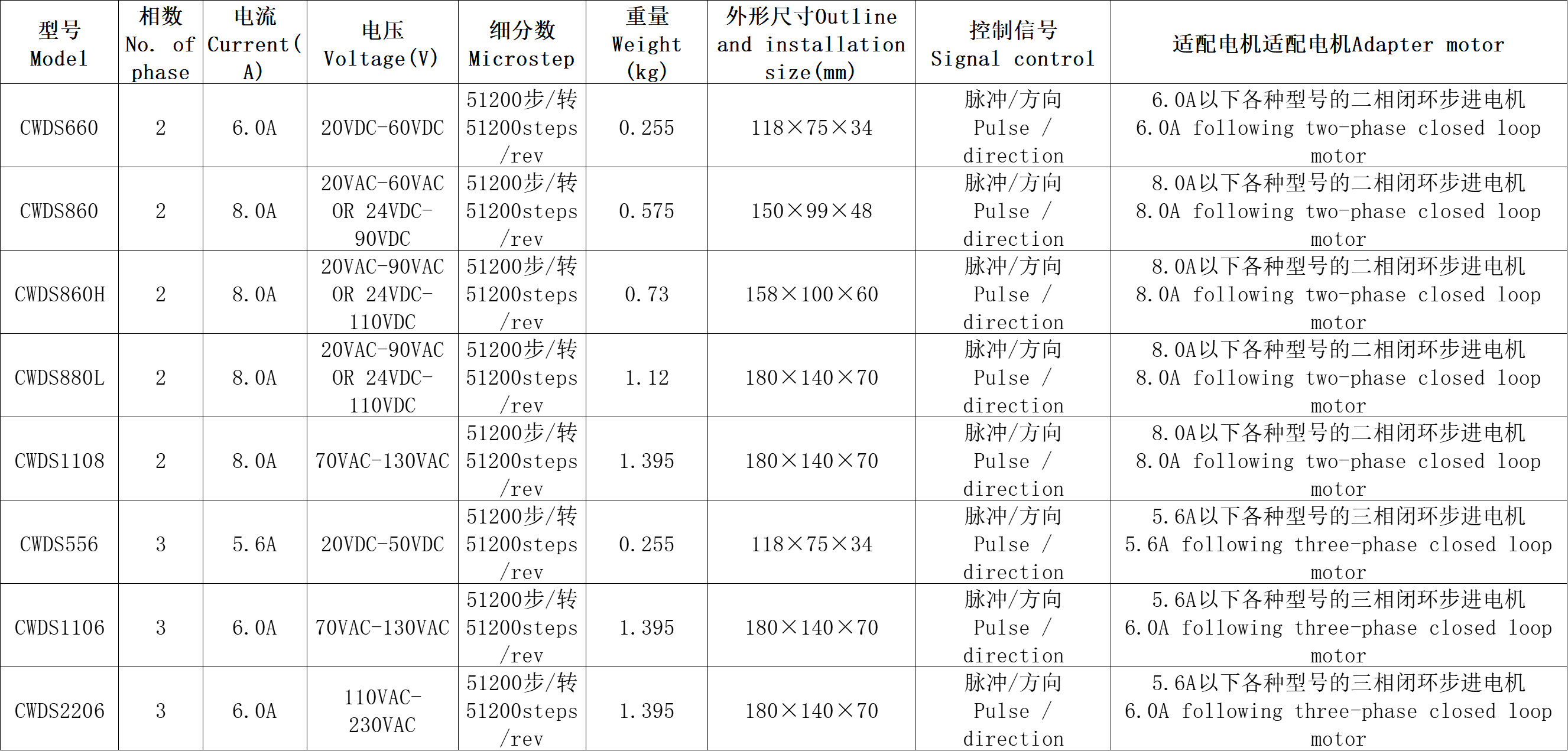

Selection Table

Closed loop stepper servo drives order information
